The hardware components of each device type are as follows:

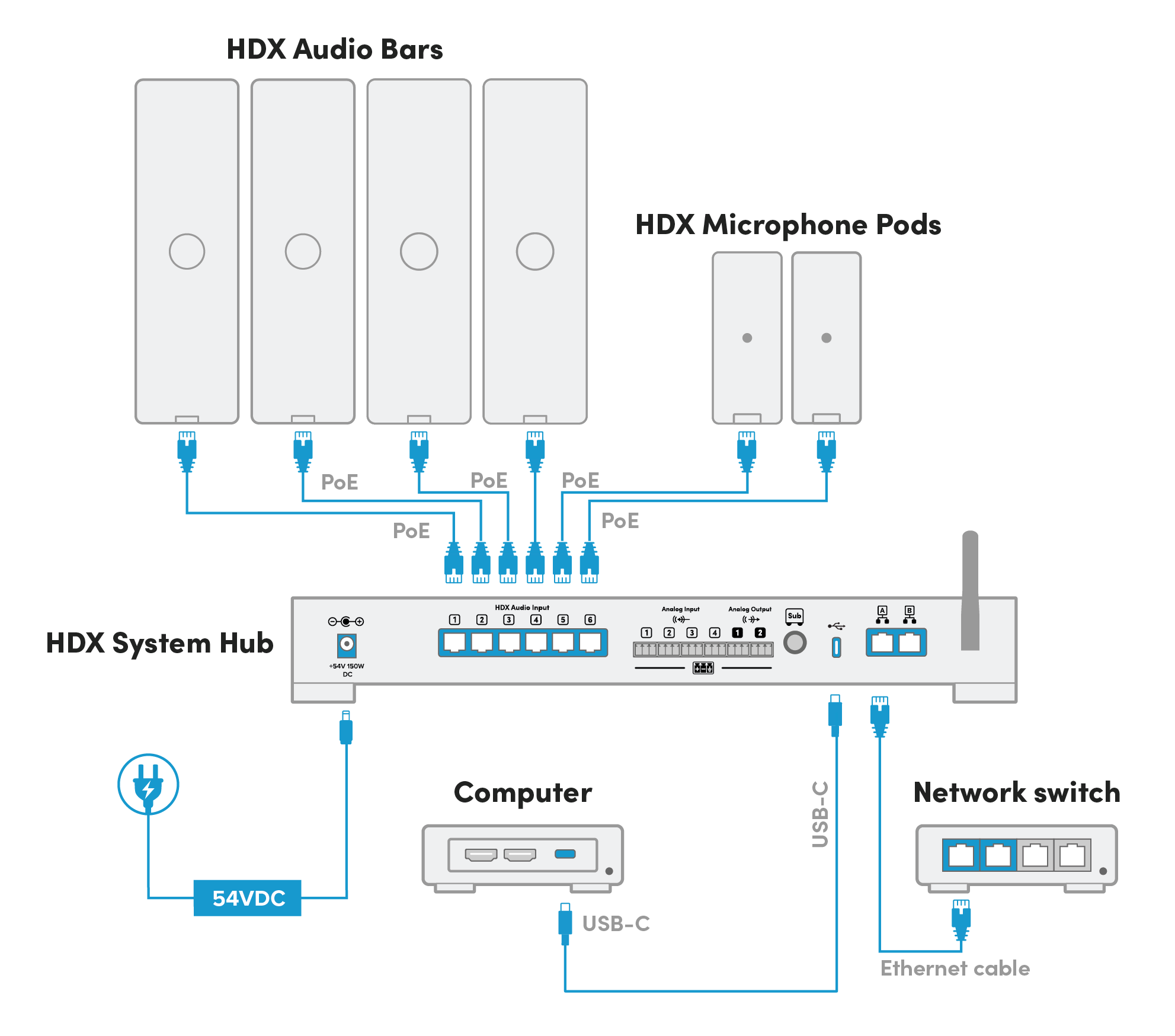

HDX Series

The HDX series is a modular system with a variety of configurations ranging from two audio bars and a system hub to four audio bars, two microphone pods and a system hub.

The audio bars and microphone pods plug into the system hub. The HDX system hub is IP-enabled, so a dedicated meeting room computer is not required. The HDX system hub supports USB connectivity, two ethernet connections, up to four balanced inputs, up to two balanced outputs, support Dante®, BLE (Bluetooth Low Energy) connectivity and Auracast™ transmissions.

The device system properties refer to these three different hardware components as Bar, Pod, and SystemHub, respectively.

HDL410

The HDL410 hardware comprises (1) two integrated microphone and speaker bars and (2) a connect module. The microphone and speaker bars plug into the connect module. The connect module is IP-enabled, so a dedicated meeting room computer is not required.

The device system properties refer to these two different hardware components as Bar and ConnectModule2, respectively.

HDL310

The HDL310 hardware comprises (1) an integrated microphone and speaker bar and (2) a connect module. The microphone and speaker bar plugs into the connect module. The connect module is IP-enabled, so a dedicated meeting room computer is not required.

The device system properties refer to these two different hardware components as Bar and ConnectModule2, respectively.

Dual HDL300

The Dual HDL300 hardware comprises (1) two integrated microphone and speaker bars and (2) a connect module. The microphone and speaker bars plug into the connect module, which is connected to the meeting room computer.

The device system properties refer to these two different hardware components as Bar and ConnectModule, respectively.

HDL300

The HDL300 hardware comprises (1) an integrated microphone and speaker bar and (2) a connect module. The microphone and speaker bar plugs into the connect module, which is connected to the meeting room computer.

The device system properties refer to these two different hardware components as Bar and ConnectModule, respectively.

HDL200

The HDL200’s integrated microphone and speaker bar is the entirety of the system hardware. It plugs directly into the meeting room computer. The HDL200 does not use a connect module.

The device system properties refer to this one hardware component as HDL200.

CV30

The CV30 is the entirety of the system hardware. It plugs directly into the meeting room computer or into a USB hub if one is being used for the accompanying audio device.

The device system properties refer to this one hardware component as CV30.

Generic camera

Generic camera refers to any non-Nureva®, third-party USB video class camera. It plugs directly into the meeting room computer or into a USB hub if one is being used for the accompanying audio device.

The device system properties refer to this one hardware component as GenericUvc.
